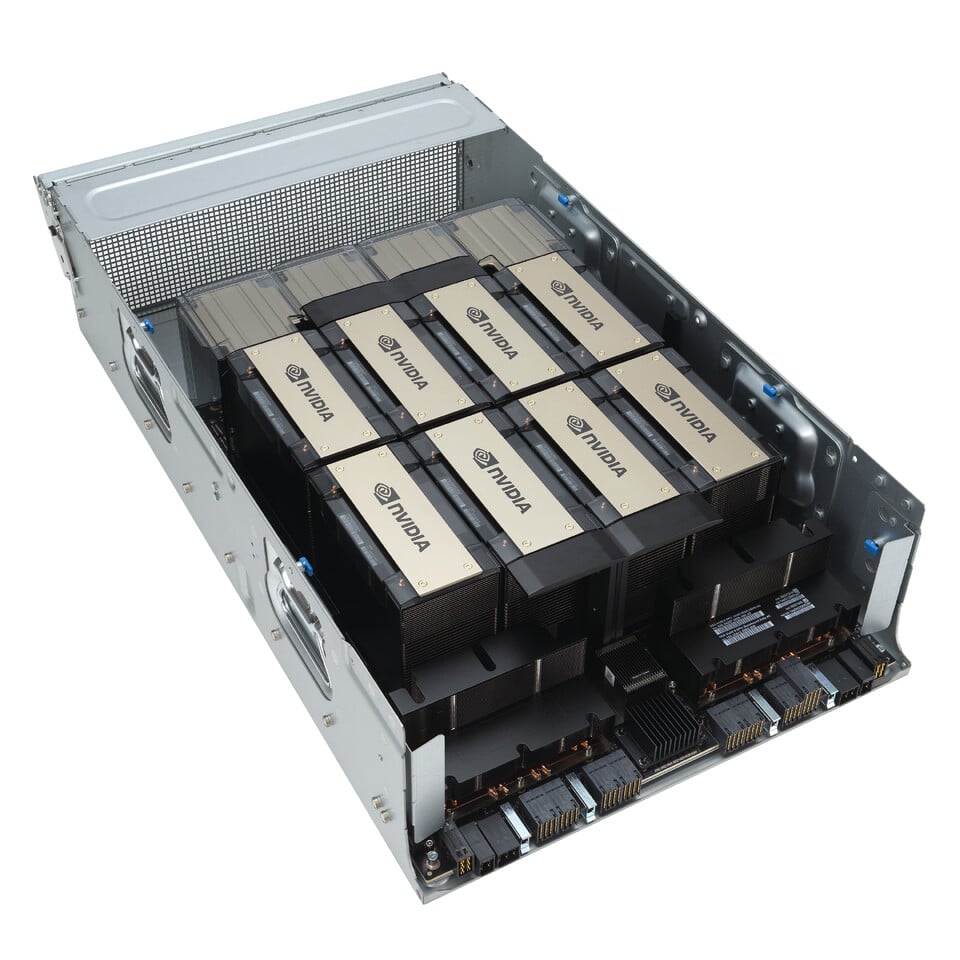

HGX H100 Optimized X13 8U 8GPU Server: The Ultimate AI and HPC Powerhouse for Exascale Computing

Description

In the rapidly evolving world of artificial intelligence and data-driven discovery, the right infrastructure can make the difference between incremental progress and groundbreaking innovation. The HGX H100 Optimized X13 8U 8GPU Server is a high-performance, enterprise-grade supercomputing platform designed to tackle the most demanding AI training, inference, and high-performance computing (HPC) workloads. Built on the robust Supermicro SYS-821GE-TNHR chassis, this 8U rackmount server integrates NVIDIA’s cutting-edge HGX H100 8-GPU technology with dual Intel Xeon processors, terabyte-scale DDR5 memory, and ultra-fast NVMe storage to deliver unmatched computational density and efficiency.

Whether you’re an AI research lab training very large language models (vLLMs), a hyperscale data center running real-time inference at scale, or an enterprise solving complex HPC simulations in fields like genomics or climate modeling, this server provides the power, flexibility, and reliability to push boundaries. It is optimized for frameworks like NVIDIA AI Enterprise, Megatron-DeepSpeed, and HuggingFace LLMOps, making it a turnkey solution for accelerating time-to-insight and reducing total cost of ownership (TCO).

This guide covers everything you need to know about the HGX H100 8-GPU server, from detailed specifications and component breakdowns to performance comparisons and deployment considerations.

At a Glance: Key Features and Strategic Advantages

• Unrivaled AI Acceleration: Powered by NVIDIA’s HGX H100 8-GPU platform, delivering up to 32 PetaFLOPS of FP8 Tensor Core performance for training massive models.
• High-Density Design: An 8U rackmount chassis that packs 8 GPUs, dual CPUs, and expansive memory/storage without compromising thermal efficiency.
• Seamless Scalability: Full NVLink/NVSwitch integration for unified GPU memory and bandwidth, enabling multi-node clusters for exascale AI.
• Enterprise Reliability: RoHS-compliant with redundant power, advanced cooling, and hardware security features like TPM 2.0 for mission-critical uptime.
• Cost-Effective Optimization: Supports air-cooled or liquid-cooled configurations, reducing energy costs by up to 40% compared to legacy systems.

Complete System Specifications

This table provides a detailed technical overview of the server’s core components, including model numbers and key performance metrics.

Deep Dive: Architectural Advantages and Component Breakdown

1. The Computational Backbone: Dual Intel® Xeon® Platinum 8592+ CPUs

While the GPUs handle the heavy lifting of parallel computation, the CPUs are the master orchestrators, managing data pipelines, system resources, and complex serial tasks. This server is equipped with a dual-socket configuration of Intel’s most powerful data center processors.

• Model: 2x Intel® Xeon® Platinum 8592+
• Total Cores: With 64 cores per CPU, the system boasts a total of 128 physical cores. This extreme core density delivers exceptional parallelism, which is essential for pre-processing massive datasets, managing complex I/O operations, and supporting GPU-intensive tasks without creating system bottlenecks.
• Colossal Cache: A staggering 320MB of L3 cache per processor ensures that frequently accessed instructions and data are instantly available, dramatically reducing latency and keeping the processing pipelines saturated.
• Optimized Throughput: Operating with a 350W TDP and a 2.0 GHz base clock, these CPUs are designed for sustained throughput, providing the reliable processing power needed to orchestrate the eight powerful GPUs and manage terabytes of data in motion.

2. A Revolution in Memory: 1TB DDR5-5600 ECC RAM

Modern AI models are not only computationally intensive but also incredibly memory-hungry. This system’s memory subsystem is engineered to eliminate data starvation and ensure the integrity of your most critical workloads.

• Terabyte-Scale Capacity: 1TB of ultra-fast DDR5 memory allows for the caching of enormous datasets and the staging of colossal AI models that exceed even the GPUs’ own VRAM, enabling the exploration of models at an unprecedented scale.
• Blazing-Fast Speed: The DDR5-5600 modules provide the latest in memory technology. Operating at a blazing 5600 MT/s, this DDR5 memory offers the extreme bandwidth required to keep the 128 CPU cores and eight GPUs constantly fed with information.
• Data Integrity: Enterprise-critical ECC (Error-Correcting Code) functionality is built-in. This feature actively detects and corrects single-bit memory errors, preventing the silent data corruption that can derail multi-day training runs, compromise research results, and lead to system instability.

3. The AI Super-Engine: The 8-Way NVIDIA HGX H100 Platform

This is the heart of the machine. The server is built around the NVIDIA HGX H100 8-GPU baseboard, the world’s most powerful platform for generative AI and HPC.

• GPU Model: 8x NVIDIA H100 SXM5 Tensor Core GPUs, each with 80GB of HBM3 memory (640GB total system VRAM) and 3.35 TB/s of bandwidth per GPU (aggregate 26.8 TB/s).
• Seamless Interconnection: The eight H100 GPUs are seamlessly interconnected via a third-generation NVSwitch and fourth-generation NVLink, creating a unified, single-instance memory fabric with a staggering 900 GB/s of GPU-to-GPU bandwidth. This revolutionary design allows the eight GPUs to function as a single, massively parallel supercomputer, enabling model-parallel training of gigantic models without the performance penalties of traversing the PCIe bus.
• Full-Stack AI Optimization: The platform is optimized for leading frameworks and libraries, including NVIDIA AI Enterprise, CUDA, Magnum IO, and Doca. This enables data scientists and developers to achieve maximum productivity and record-breaking performance with minimal setup.

The H100 Advantage: A Generational Leap in Performance

While the H100 is a proven powerhouse, comparing it to its successor (H200) and predecessor (A100) highlights its strengths in compute-intensive tasks.

4. High-Throughput Storage and Networking

An AI server is only as fast as its slowest component. This system’s storage and networking are engineered for high throughput to keep the computational engines running at full throttle.

• Blistering NVMe Storage: With 30.72TB of enterprise-grade NVMe PCIe 4.0 storage, the server provides the low-latency, high-throughput data access required for rapid dataset loading and frequent model checkpointing. The drives are rated for 1 DWPD, ensuring they can withstand the rigorous, write-heavy demands of continuous AI training.
• Scalable Networking: Dual 25GbE SFP28 NICs provide ample bandwidth for data ingestion and system management. More importantly, the system is architected for Super Cluster interconnection, ready to be integrated into high-performance fabrics like NVIDIA® Quantum-2 InfiniBand for building multi-node, distributed training environments.

Ideal Applications

This server is tailored for environments requiring maximum compute density and efficiency. Key use cases include:

• AI Training and Inference: Perfect for training very large language models (vLLMs) and running high-throughput inference on models like GPT or Llama.
• Deep Learning Recommendation Systems: Handles massive datasets for personalized recommendations in e-commerce or content platforms.
• Computer Vision and Image Processing: Accelerates tasks like object detection, video analysis, and medical imaging.
• High-Performance Computing (HPC): Ideal for simulations in genomics, climate modeling, and computational fluid dynamics.
• Generative AI: Powers creative applications such as text-to-image generation and natural language processing.

Frequently Asked Questions (FAQ)

1. What workloads is this server best suited for? This server excels at training and fine-tuning very large language models (vLLMs), deep learning recommendation models, computer vision systems, and large-scale scientific simulations (HPC) in fields like drug discovery, climate modeling, and computational fluid dynamics.

2. Can the components be upgraded in the future? The system is designed with a balanced architecture. While core components like the HGX baseboard are integrated, system memory (RAM) and NVMe storage drives can be expanded or upgraded to meet future capacity requirements.

3. What software and operating systems are supported? The server supports all major enterprise Linux distributions (such as Ubuntu, RHEL) and is fully compatible with the NVIDIA AI Enterprise software suite, the CUDA Toolkit, and containerization platforms like Docker and Singularity, ensuring seamless integration into existing MLOps pipelines.

4. Why is the 8-GPU NVSwitch configuration so important? The 8-GPU configuration with NVSwitch creates a unified, high-bandwidth memory pool. This allows developers to treat the eight GPUs as a single, powerful accelerator, dramatically simplifying the process of training models that are too large for one GPU and unlocking near-linear performance scaling on model-parallel tasks.

5. How does this compare to the upcoming NVIDIA Blackwell B200 platform? The H100 is a proven powerhouse in the Hopper architecture, offering excellent balance of compute and memory for today’s workloads. The Blackwell B200 promises the next leap in raw performance (TFLOPS). The H100 is ideal for current memory-bound problems, while Blackwell targets future compute-intensive tasks.

6. What are the power and cooling requirements? The server can draw over 10kW under full load, making it suitable for enterprise data centers with high-capacity PDUs and advanced cooling (air or liquid). Consult a data center specialist for precise infrastructure needs.

Conclusion: The Strategic Infrastructure for Tomorrow’s Intelligence

The HGX H100 Optimized X13 8U 8GPU Server is the definitive platform for organizations that refuse to be limited by computational constraints. It combines best-in-class processing, memory, storage, and acceleration into a cohesive, enterprise-ready solution. By delivering unprecedented performance for the largest and most complex AI workloads, this server is not merely a piece of hardware; it is the strategic infrastructure investment that powers the future of intelligence.
